Leading Supplier of Cuplock Scaffolding System

Cuplock Scaffolding System is the most commonly used scaffolding system in the world. The official name of this scaffolding system is Cuplok, but most people know it as Cuplock. EK Cuplock Scaffolding is used for support and access structures in construction industry, offshore construction, industrial maintenance, and ship building. And all Cuplock System parts are designed and manufactured to meet all scaffolding industry standard.

Cuplock System has quick locking and fastening devices that simplify the construction process and make it safer for workers to participate in construction. All of these are good ways to optimize the work efficiency of construction projects and improve the construction safety index.

For This Page：

Kumuha ng Mabilisang Quote

Cuplock Scaffolding Video

There are generally two methods for welding cuplock standards: manual welding and machine welding.
Manual welding refers to manual arc welding. First, spot welding is used to fix the bottom cups and located pins to the cuplock vertical tube, then full welding is performed. The welding direction is from bottom to top, ensuring the components are firmly welded to the cuplock vertical tube and avoiding common weld bead or porosity defects found in upright welding.
Machine welding includes CO₂ gas shielded welding and resistance welding. Gas shielded welding has a large penetration depth, less spatter, and a high degree of automation, making it suitable for mass production. Most scaffolding manufacturers use CO₂ gas shielded welding. Resistance welding equipment has a higher investment cost, but it has a smaller heat-affected zone on the base material, and the joint strength can reach over 95% of the base material's strength. It is typically used for cuplock vertical tube extensions.

Key Points and Quality Control for Cuplock Stansards Welding
1. The welding surfaces of the cuplock vertical tube and the cuplock need to be ground smooth to avoid impurities such as oil and moisture affecting the weld quality.
2. The weld should be free of defects such as cracks and lack of fusion, with an undercut depth ≤ 0.5mm (as specified in JGJ 166-2016).
3. For high-strength steels such as Q345, post-weld treatment at 250℃ for 2 hours is required to reduce the risk of hydrogen-induced cracking.

EK Cuplock Scaffolding vertical welding is mainly divided into three steps:

1. Adjust the tooling equipment distance and determine the bottom cups interval. Use spot welding to fix the bottom cups and located pins to the vertical tube.

2. Located pins full weld, that make sure the located pins are firmly fixed to the vertical tube.

3. Bottom cups full weld, that to ensure the stability of the bottom cups and ensure the safety index in the construction and use.

Kumuha ng Quote Ngayon

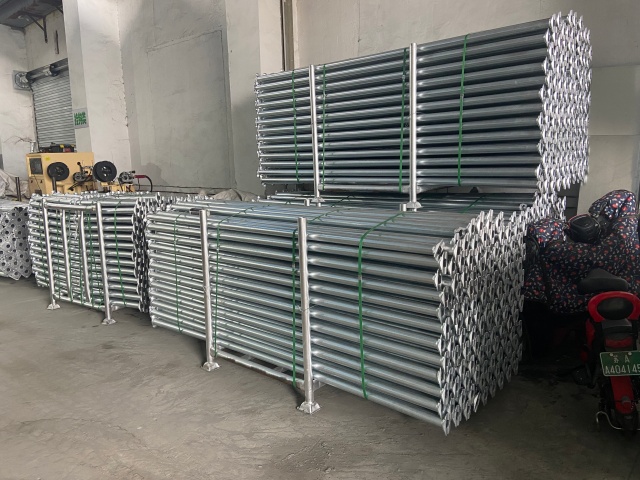

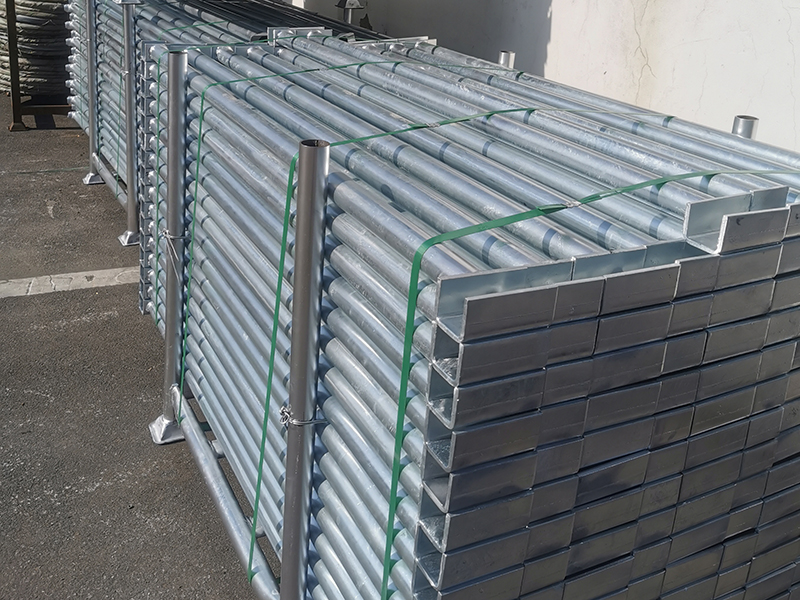

Bulk Cuplock Scaffolding System

Kapag ang produksiyon at packaging ng isang batch ng mga produktong sistema ng scaffolding ng Cuplock ay hinihiling ng customer ay nakumpleto, kukuha kami ng mga larawan at panatilihin ang mga file at ipadala ito sa customer, ipagbigay -alam sa oras ng paglo -load ng batch na ito ng scaffold cuplock at ipaalam sa customer ang iskedyul ng pagpapadala.

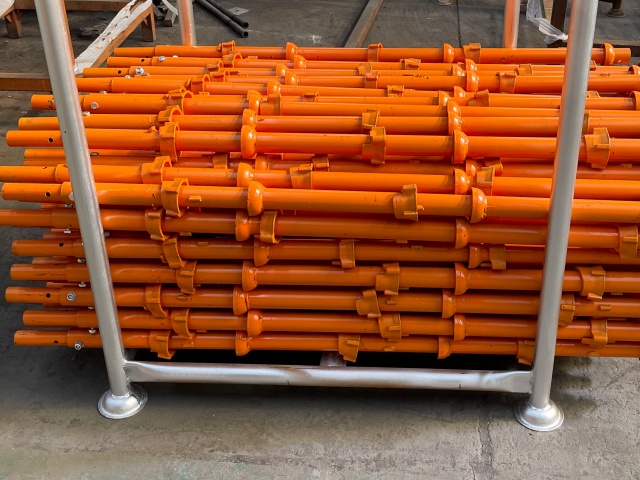

Painting Cuplock Scaffolding System

Bulk Cuplock System

Send An Inquiry

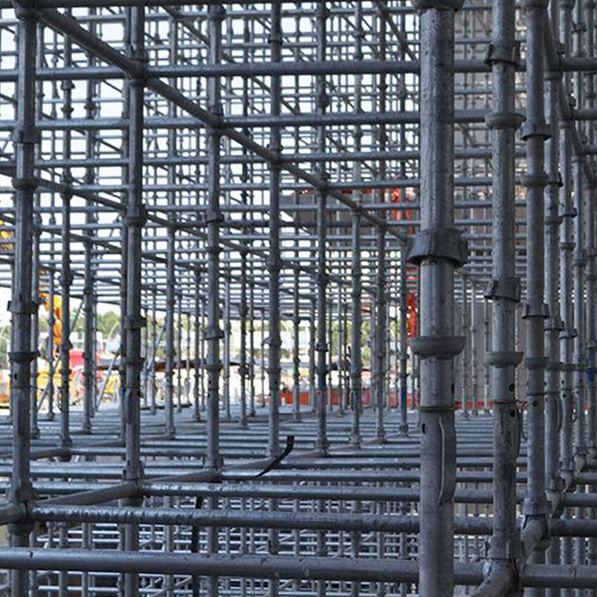

What is cuplock scaffolding

Cuplock Scaffolding, is a scaffold system that uses the "Cup" and "Blade" to lock the vertical/standard and horizontal/ledger together, and lock the blades by twisting the cup. This Cuplock Scaffold System uses no nut, bolt or wedge. Cuplock’s Scaffolding System node-point is revolutionary, and makes it faster and easier than any other scaffolding system.

Get A Quote Now

Why Choose Cuplock?

Cuplock Scaffolding System joint structure is reasonable, simple production process, easy operation, wide range of use, compared with traditional scaffolding, Cuplock System has the following remarkable features:

Cuplock Features	Details
Easy to Stand	No nut and bolt or wedge, just lock the blade into cup at each node on the standard.
Sample	Fast and simple to erect with only four component fastenings.
Light Weight	Manufactured using 3.2mm thickness high grade steel, Cuplock System is 20% lighter than standard 4mm thickness scaffolding tube.
Economical	Cuplock System with only three maincomponents.
Fast	30%-50% faster than traditional scaffolding.
Durable	Hot-Dip-Galvanized provides a low maintenance, long life.
Versatile	With 500mm cup intervals on the verticals, Cuplock Scaffolding System is extremely versatile Facade, Shoring Structures, Circular, Birdcages, Staircases, Mobile Towers and etc.
Flexible	0.6m to 3.0m bays using boards or battens.

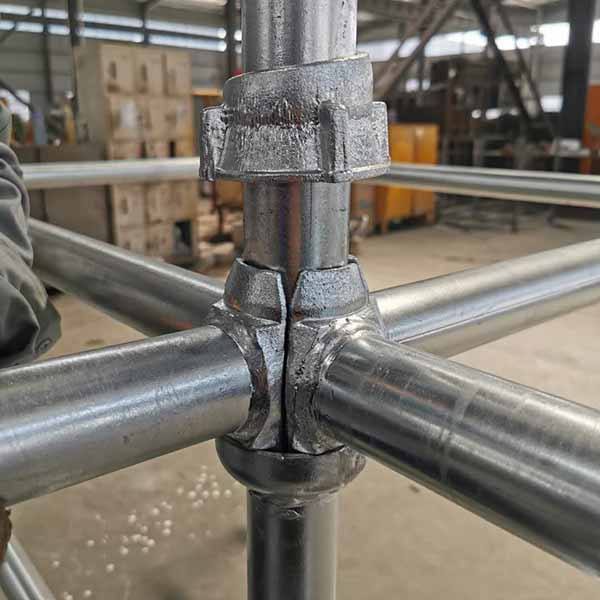

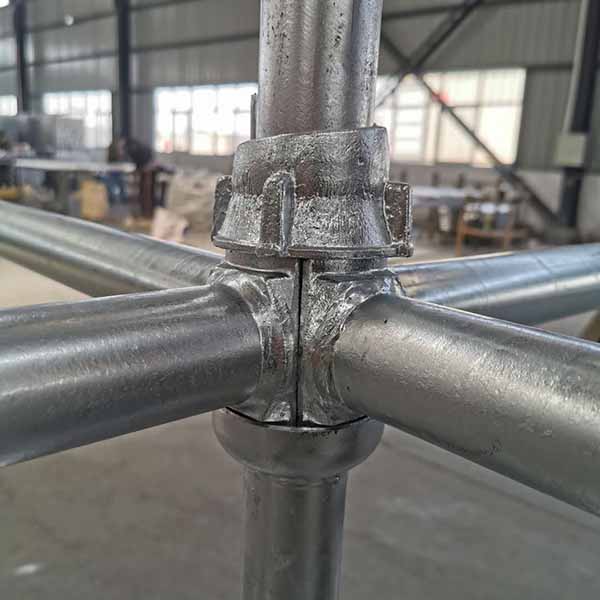

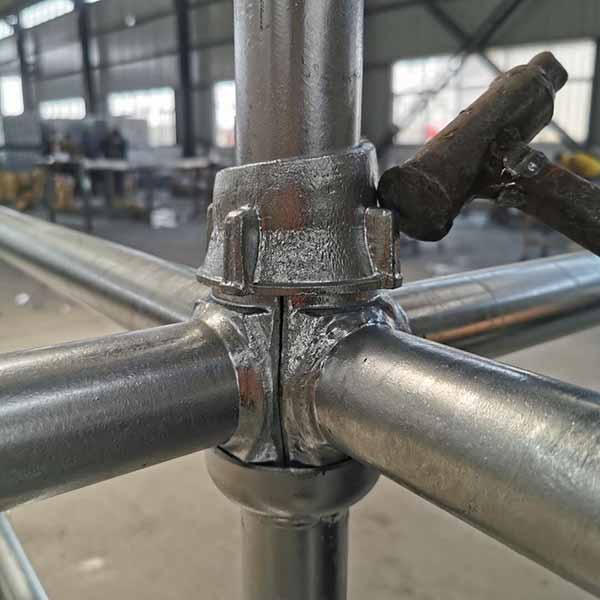

Cup-Locking Procedure:

Here below are pictures showing how to install the Cuplock System :

1、Locate the ledger blade into the bottom cup

2、Slide the top cup down the standard and rotate

3、Tighten with a hammer blow

4、A cuplock’s node-point completed

Cuplock Scaffolding System Parts

EK Scaffolding provides a high quality range of Cuplock Scaffolding System to customers with needs. The entire range of Cuplock System is perfectly manufactured using high grade raw materials, in compliance with the international quality standards. Moreover, EK Scaffolding manufacturer can provide a variety of specifications for these products, in order to meet different requirements of customers. Our product range includes Cuplock Vertical/Standard, Cuplock Ledger/Horizontal, Cuplock Transom, Cuplock Hop-Up Bracket and Cuplock accessories etc.

Mga Listahan ng Bahagi ng Cuplock Scaffolding

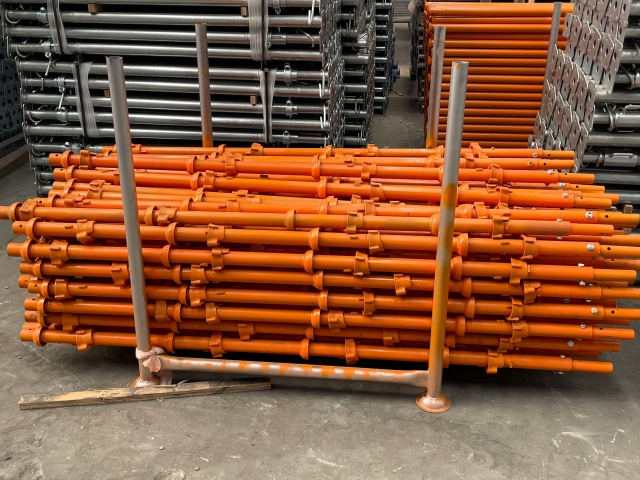

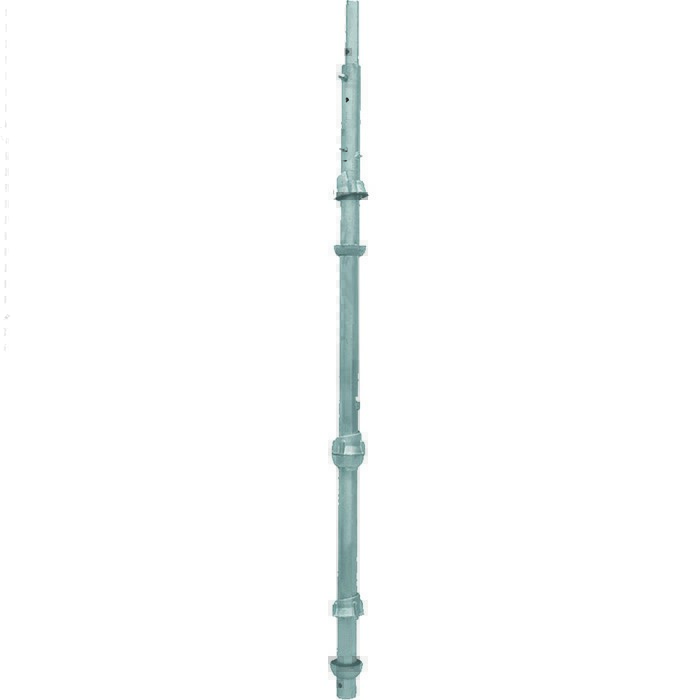

Pamantayan sa Cuplock

Ang mga pamantayan ng cuplock ay mga patayong bahagi ng sistema ng cuplock. OD48.3mm na may mga top cup at bottom cups. I-click ang tingnan ang mga detalye para sa karaniwang sukat at detalye ng cuplock.

Magtanong ng Presyo

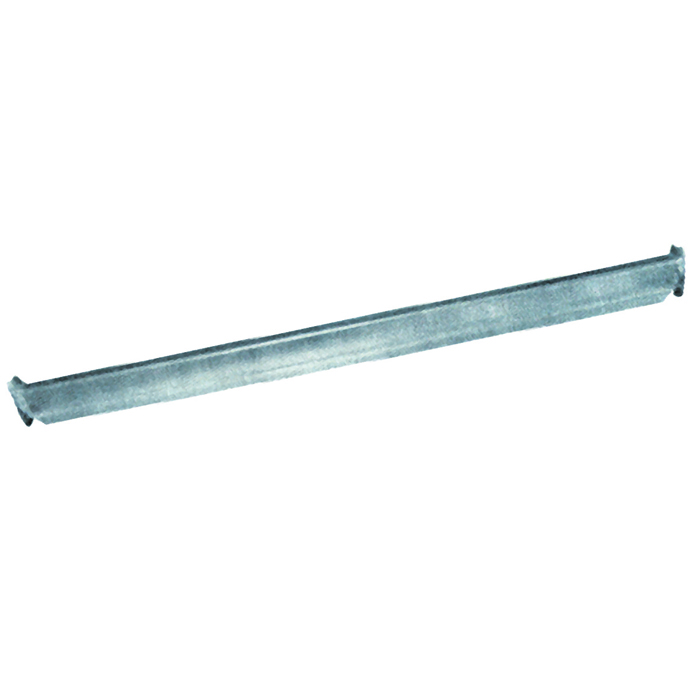

Cuplock Palakasin ang Transom

Ang cuplock scaffold omega transoms ay sumusuporta sa scaffold battens upang bumuo ng walk board at work platform. Mayroong isang board, dalawang board, at tatlong board omega transom sa cuplock system.

Magtanong ng Presyo

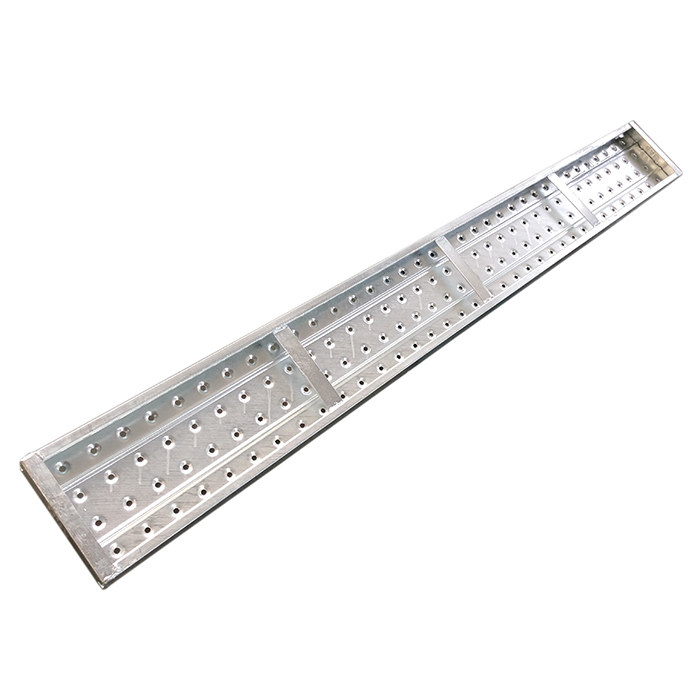

Scaffolding Plank

238x57mm Cuplock Omega Battens with Plain Ends Work with Cuplock Scaffold Omega Transom.

Ask A Price

Cuplock ledger

Ang mga cuplock ledger ay mga pahalang na bahagi ng cuplock system scaffolding. Ito ay ginawa ng OD48.3mm scaffold tube na may ledger blades. I-click ang Tingnan ang Mga Detalye para sa laki at mga detalye ng cuplock ledger.

Magtanong ng Presyo

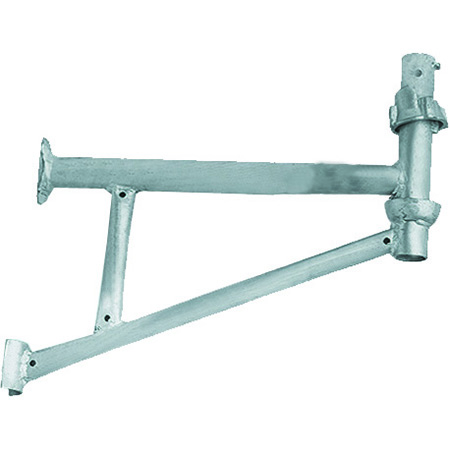

Cuplock Tube Bracket

Cuplock scaffold system three board brackets hold three pieces of cuplock planks in width. It is used for hanging and suspended scaffold construction.

Ask A Price

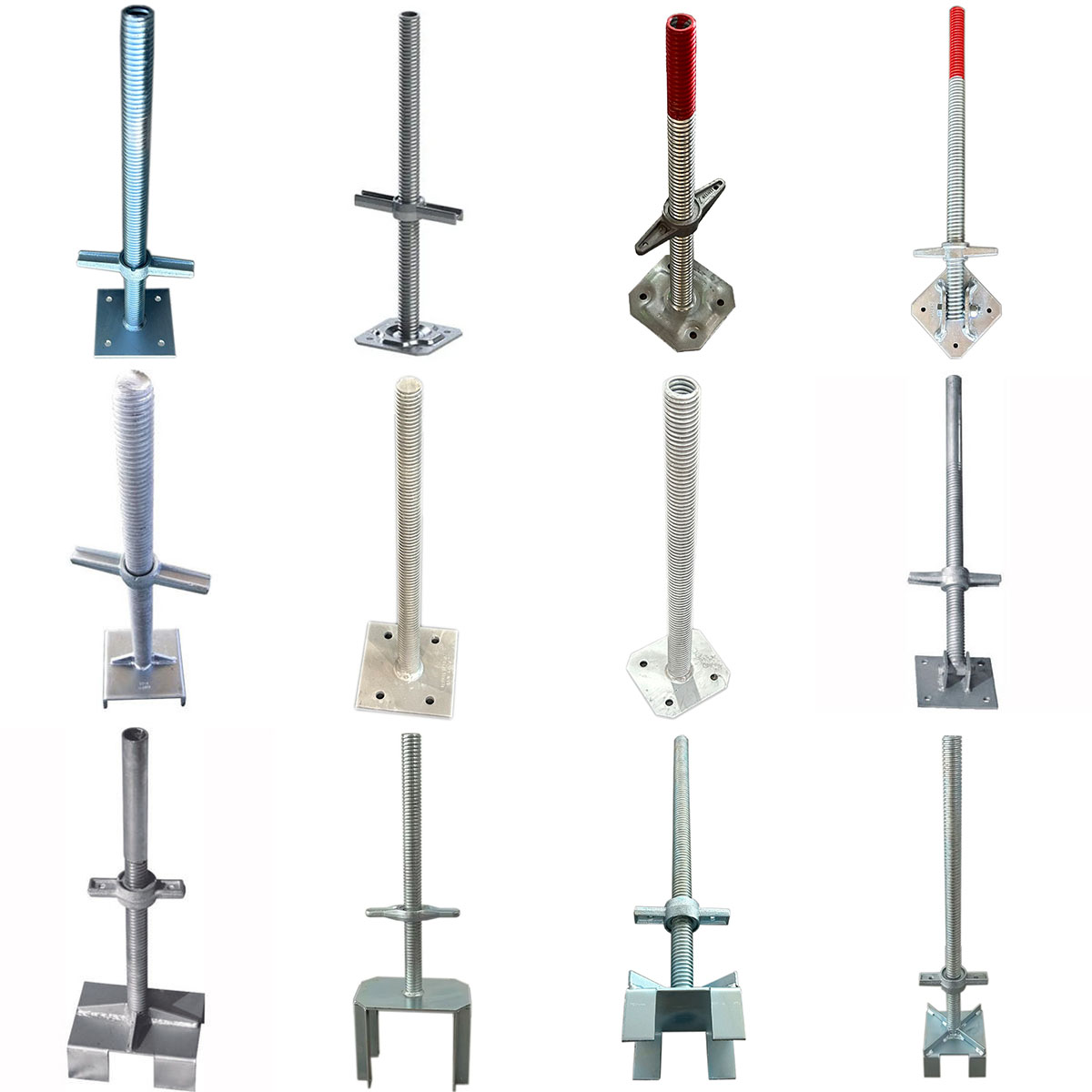

Base Jack

Cuplock scaffolding leveling parts as feet of the cuplock tower. OD38mm hollow screw jack stem or OD35mm solid base jack for your cuplock system.

Ask A Price

Cuplock Diagonal Brace

Cuplock diagonal braces na may 2 swivel blades. Ang mga swivel blades ay ipinasok sa cuplock vertical cups sa construction.

Magtanong ng Presyo

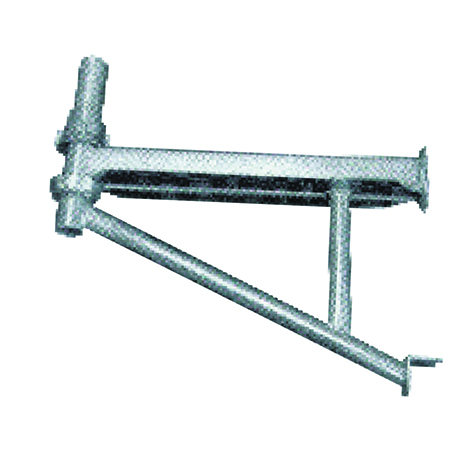

Cuplock Angle Bracket

Cuplock Omega Hop Up Bracket are side bracket used to support scaffold omega battens and boards in cuplock system with T section.

Ask A Price

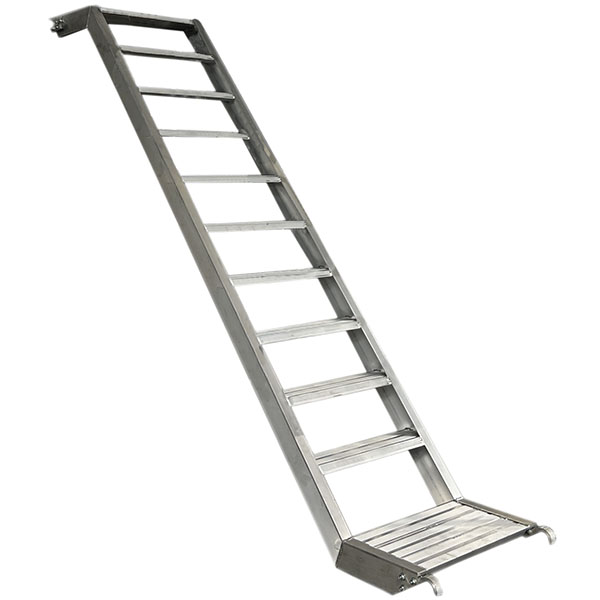

Stair ladder

Cuplock scaffolding lightweight aluminum stairs for access construction and building with hooks.

Ask A Price

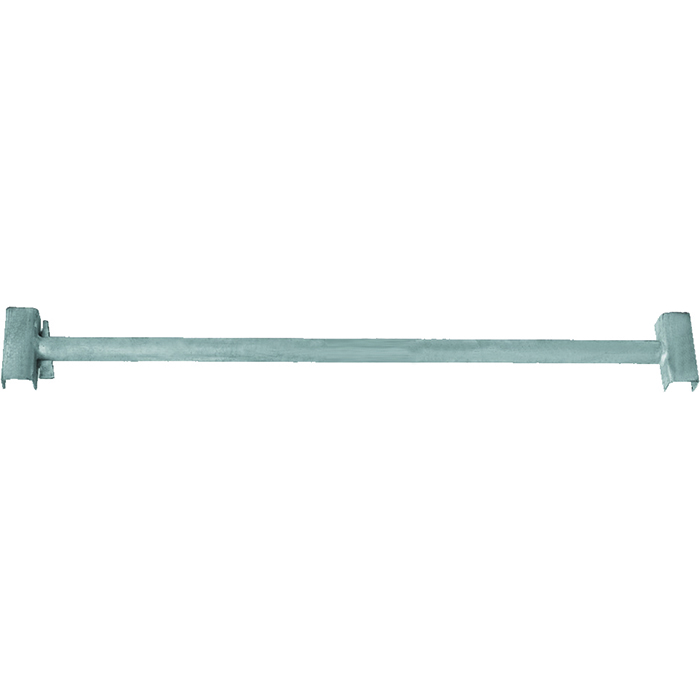

Cuplock Transom

Cuplock scaffold system intermediate transoms ay ginagamit upang suportahan ang scaffold planks sa gitna ng cuplock ledger.

Magtanong ng Presyo

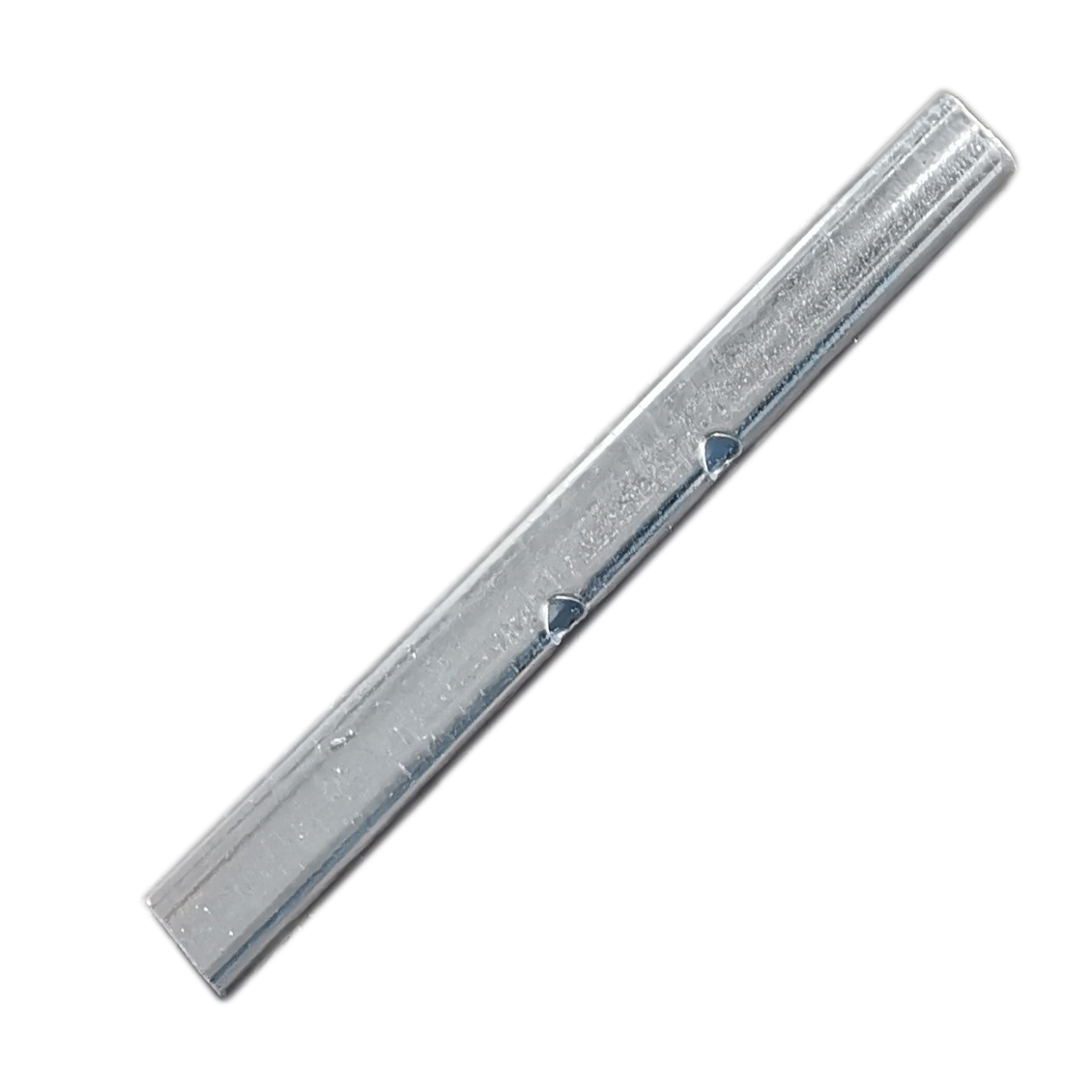

Joint Coupler

Extended spigot adaptor connects cuplock cantilever frames, brackets, and cuplock standard in handing and suspended cuplock system construction.

Ask A Price

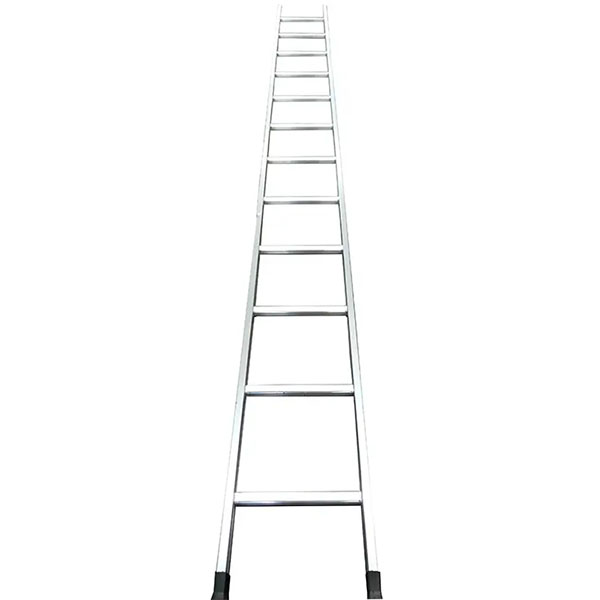

straight ladder

Cuplock scaffold steel ladders offer an access system. It is with a socket in manufacturing. The cuplock ladders are fixed by a ladder bracket in construction.

Ask A Price

Core Cuplock Systems Parts manufactured by EK scaffolding are as follow:

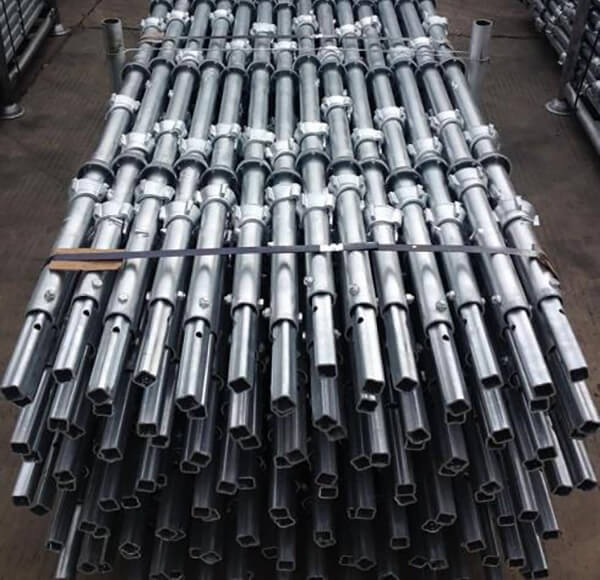

Spigoted Standard / Vertical

These cuplock standards are used in conjunction with integral spigots, 150mm long, are provided at the top of each for making vertical connections. The spigots are drilled to receive locking pins, when it is necessary to resist minor tensile forces between standard members.

Cuplock Spigoted Standard / Vertical Steel Tube: 48.3*3.2mm
Code	Item	Length		Weight
EK-CLS001	Cuplock Spigot Standard	0.5 M	1’8"	3.40 KG	7.50 LBS
EK-CLS002	Cuplock Spigot Standard	1.0 M	3’3"	6.10 KG	13.45 LBS
EK-CLS003	Cuplock Spigot Standard	1.5 M	4’11"	8.72 KG	19.22 LBS
EK-CLS004	Cuplock Spigot Standard	2.0 M	6’6"	11.34 KG	25.00 LBS
EK-CLS005	Cuplock Spigot Standard	2.5 M	8’2"	13.95 KG	30.75 LBS
EK-CLS006	Cuplock Spigot Standard	3.0 M	9’10"	16.57 KG	36.53 LBS
Specifications can be customized according to requirements.

Matuto nang higit pa

Spigotless Standard / Vertical

These standards have no spigot, this combination of components will cater for all extended soffit heights, but for lower heights just spigotless design allows the insertion of jacks with various head components to meet the requirements of differing support applications such as aluminum beam support or decking systems.

Cuplock Spigotless Standard / Vertical Steel Tube: 48.3*3.2mm
Code	Item	Length		Weight
EK-CLS007	Cuplock Spigotless Standard	0.8 M	2’7"	4.56 KG	10.05 LBS
EK-CLS008	Cuplock Spigotless Standard	1.3 M	4’3"	7.18 KG	15.83 LBS
EK-CLS009	Cuplock Spigotless Standard	1.8 M	6’	9.79 KG	21.58 LBS
EK-CLS010	Cuplock Spigotless Standard	2.3 M	7’6"	12.41 KG	27.36 LBS
EK-CLS011	Cuplock Spigotless Standard	3.0 M	9’9’’	15.70 KG	34.61 LBS
Specifications can be customized according to requirements.

Matuto nang higit pa

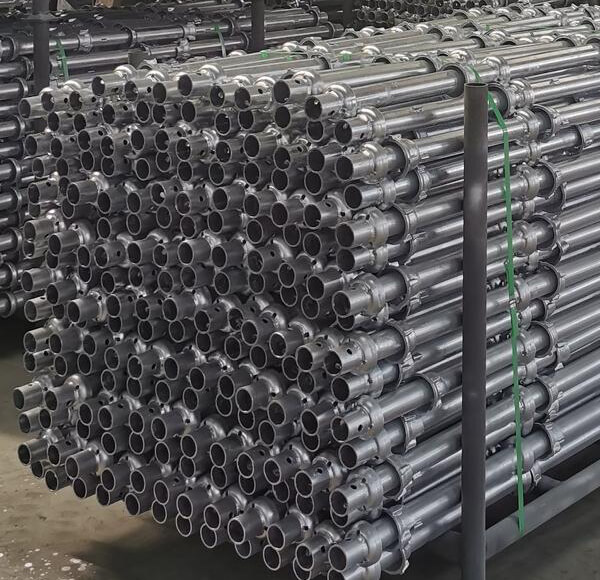

cuplock scaffolding spigotless standard/vertical

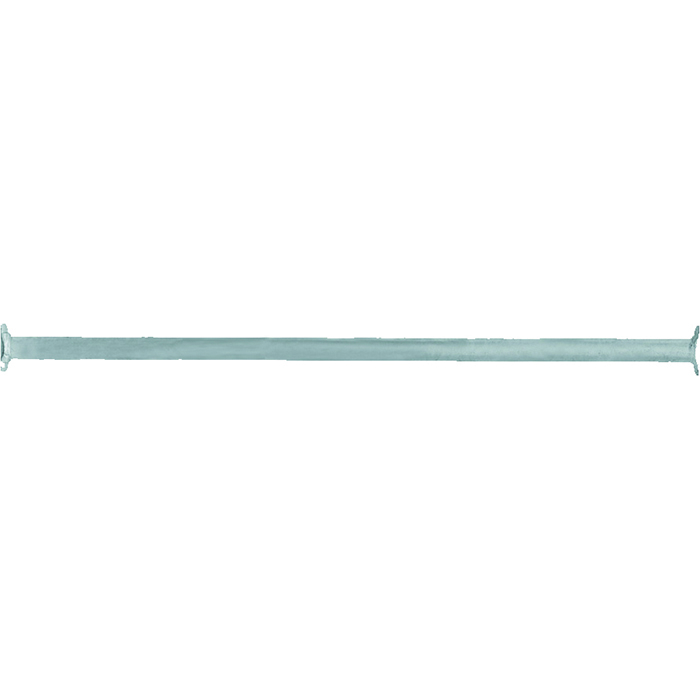

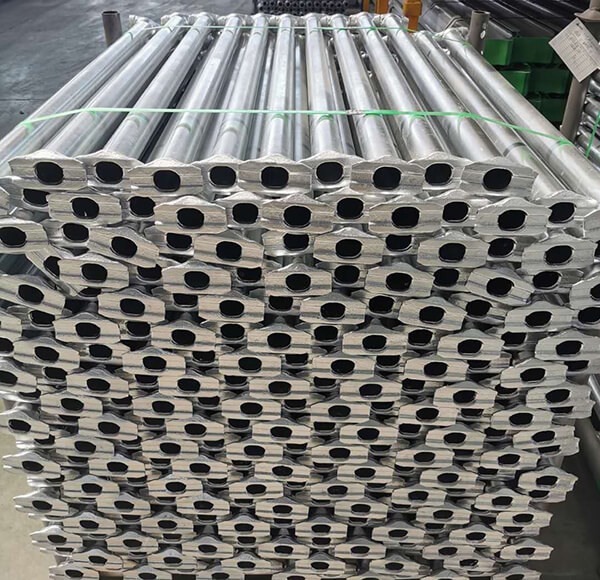

Cuplock Ledger / Horizontal

Cuplock Ledgers are manufactured from 48.3*3.0mm scaffolding tube with forged steel blade ends which locate into bottom cups of the standards and are locked in place by the corresponding top cups. Ledgers are available in various lengths to provide the desired grid specification for scaffolding or formwork system.

Cuplock Ledger / Horizontal Steel Tube: 48.3*3.0mm
Code	Item	Length		Weight
EK-CLL001	Cuplock Ledger	0.6 M	2’	2.35 KG	5.18 LBS
EK-CLL002	Cuplock Ledger	1.0 M	3’3"	3.75 KG	8.27 LBS
EK-CLL003	Cuplock Ledger	1.5 M	4’11"	5.47 KG	12.06 LBS
EK-CLL004	Cuplock Ledger	2.0 M	6’6"	7.21 KG	15.90 LBS
EK-CLL005	Cuplock Ledger	2.5 M	8’2"	8.93 KG	19.69 LBS
Specifications can be customized according to requirements.

Matuto nang higit pa

Cuplock Transom

Cuplock transoms are manufactured from 48.3*3.2mm scaffolding tube and designed to provide intermediate support for standard scaffold walk boards by spanning between the inner and outer ledgers.

Cuplock Transom Steel Tube: 48.3*3.2mm
Code	Item	Length		Weight
EK-CLT001	Cuplock Transom	0.56 M	1’10’’	3.79 KG	8.36 LBS
EK-CLT002	Cuplock Transom	0.80 M	2’7"	4.67 KG	10.30 LBS
EK-CLT003	Cuplock Transom	1.30 M	4’3"	6.50 KG	14.33 LBS
EK-CLT004	Cuplock Transom	1.80 M	6’	8.33 KG	18.36 LBS
Specifications can be customized according to requirements.

Matuto nang higit pa

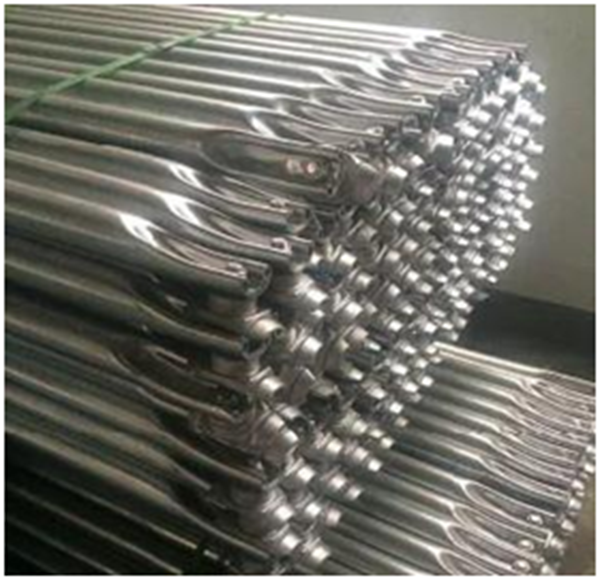

Cuplock Brace / Diagonal

Cuplock braces are manufactured from 48.3*3.2mm scaffolding tube and each brace has two swivel blade ends. Their function is to provide transverse and longitudinal bracing to scaffold structures.

Cuplock Brace / Diagonal Steel Tube: 48.3*3.2mm
Code	Item	Length		Weight
EK-CLB001	Cuplock Brace	1.5*1.8M	4’11’’*6’	8.70 KG	19.18 LBS
EK-CLB002	Cuplock Brace	1.8*2.0M	6’*6’6’’	9.80 KG	21.60LBS
EK-CLB003	Cuplock Brace	1.5*2.5M	4’11"*8’2’’	10.70 KG	23.59 LBS
EK-CLB004	Cuplock Brace	2.0*2.5M	6’6"*8’2’’	11.50 KG	25.35 LBS
EK-CLB005	Cuplock Brace	2.0*3.0M	6’6’’*9’10’’	13.00 KG	28.66 LBS
Specifications can be customized according to requirements.

Matuto nang higit pa

Lahat ng Produkto ng Cuplock

Cuplock Scaffolding System

1000mm HDG Cuplock Scaffolding Vertical

Mainit na dip galvanized ledger o pahalang para sa cuplock scaffolding system

1.2M HDG Cuplock Scaffolding Transom System

Pagpipinta ng cuplock scaffolding system pahalang na ledger

Pagpipinta ng cuplock scaffolding system transom

Pagpipinta Cuplock Scaffolding System Vertical Standard

Pagtatapos ng Cuplock Scaffolding System Ledger

Cuplock Forged Top Cup

Cuplock Scaffolding Bottom Cup

Galvanized cuplock scaffolding ledger pahalang

Galvanized scaffolding cuplock system standard vertical

Cuplock Scaffolding System Galvanized Ledger Painted Horizontal

2.3M Vertical HDG Cuplock Scaffolding System

Cuplock Scaffolding HDG Ledger

Cuplock Scaffolding System HDG Scaffolding

Cuplock Scaffolding HDG Galvanized Standard Vertical

1200mm HDG Cuplock Scaffolding System Ledger

900mm galvanized cuplock scaffolding system ledger

Galvanized ledger scaffolding cuplock bracing system

HDG Cuplock Scaffolding System Ledger Vertical

Forged Cuplock Ledger Blade

2.0M HDG Cuplock Scaffolding System Standard

1.2M Cuplock Scaffolding System HDG Ledger

0.6M galvanized cuplock scaffolding system pahalang

0.9m cuplock scaffolding system galvanized ledger

0.9M cuplock scaffolding system HDG pahalang

0.9M Galvanized Cuplock Scaffolding Horizontal System

Cuplock Scaffolding System Ledger Pahalang

0.6M cuplock scaffolding system HDG ledger

Mangyaring Ipadala sa Amin ang Mga Produktong Gusto Mo.

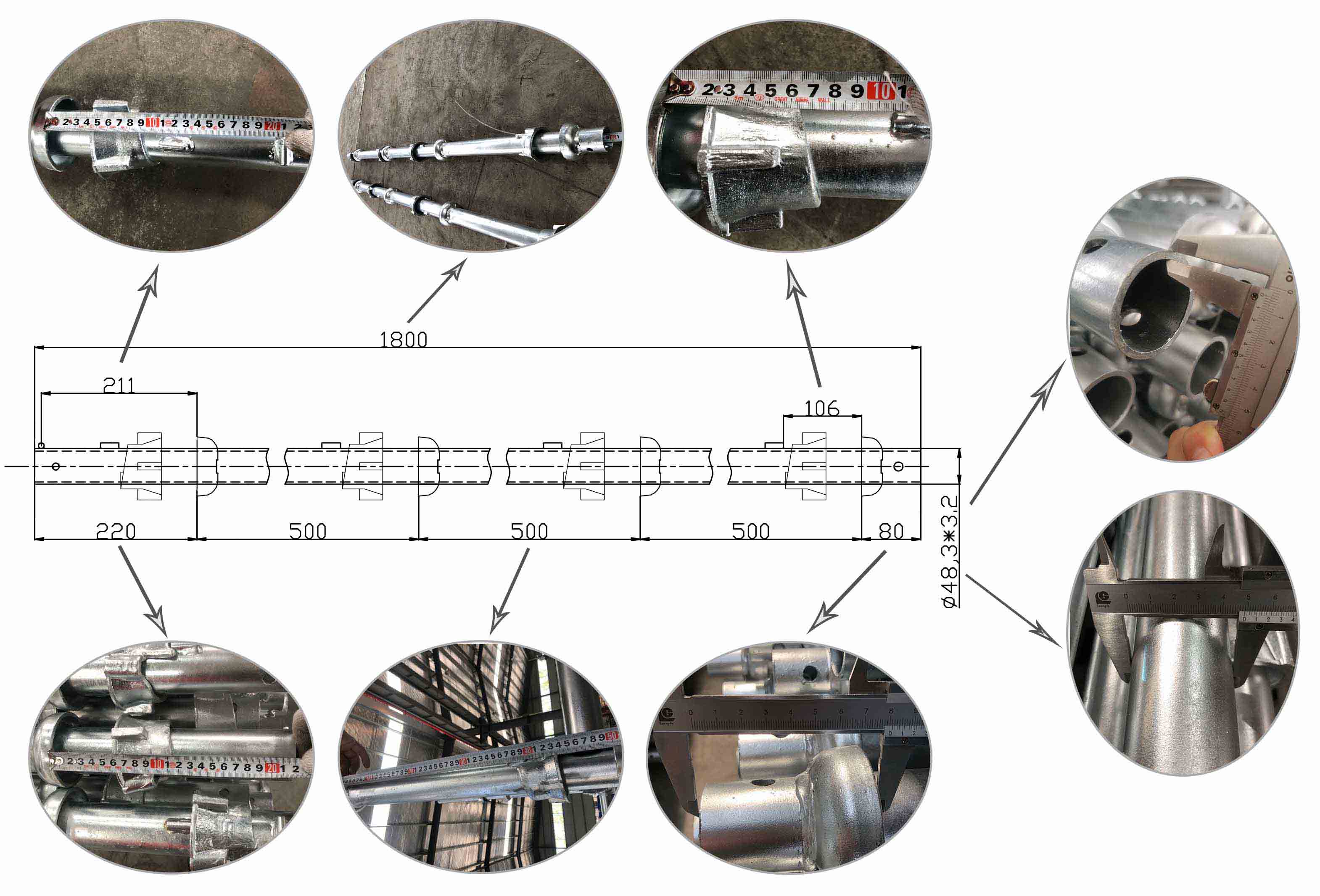

EK Cuplock System Inspection

EK Scaffolding's professional QC will make detailed measurements based on the drawings confirmed with customers after scaffold cuplock products come out, so as to ensure that the size of cuplock scaffolding products meets customer requirements.

Humiling ng Ulat sa Pagsubok

EK Cuplock Scaffolding Pag -install ng Pagsubok

EK Scaffolding - Before cuplock product packaging, professional quality inspection personnel will randomly extract components of Cuplock Scaffolding system from the products purchased by customers for installation and testing, so as to check whether the product can be used normally.

EK Cuplock Scaffolding Pag -install ng Pagsubok

Cuplock Scaffolding Catalogue

Here is catalogue of EK cuplock scaffolding system. You can see all our diagonal brace, ledger and standard products here.

If you feel that cuplock scaffold catalogue cannot satisfy you, we also have files to download.

Pangalan	I-download
EK Cuplock Scaffolding System Catalogue.pdf	I-download

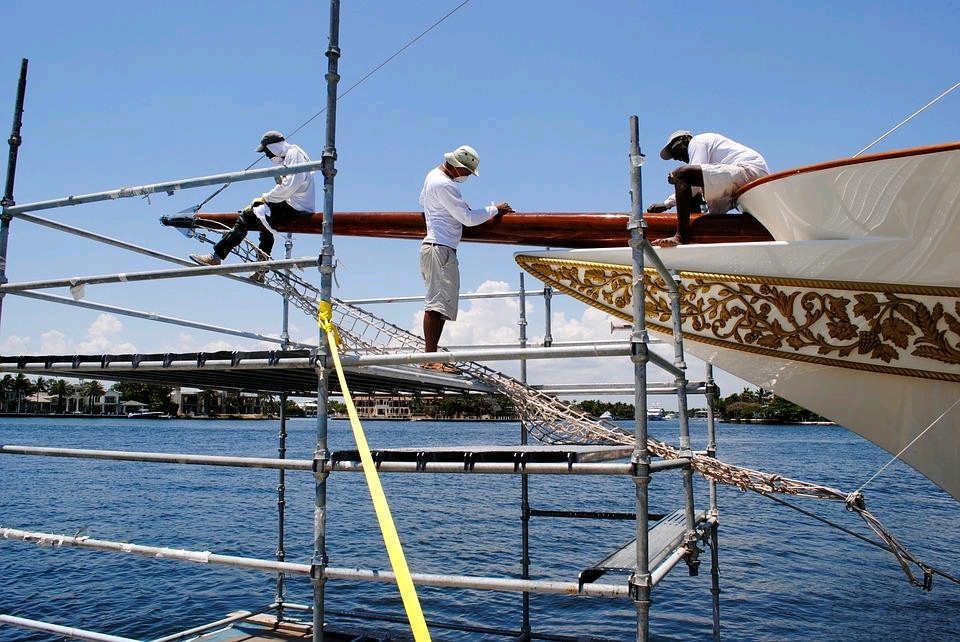

Projects of Cuplock Scaffolding System

The versatility and wide range of cuplock makes it an ideal system for almost any situation. From the simple residential building project to the most complex
access and support structures, it can follow curves and complex contours and is also suitable for many industrial maintenance situations.

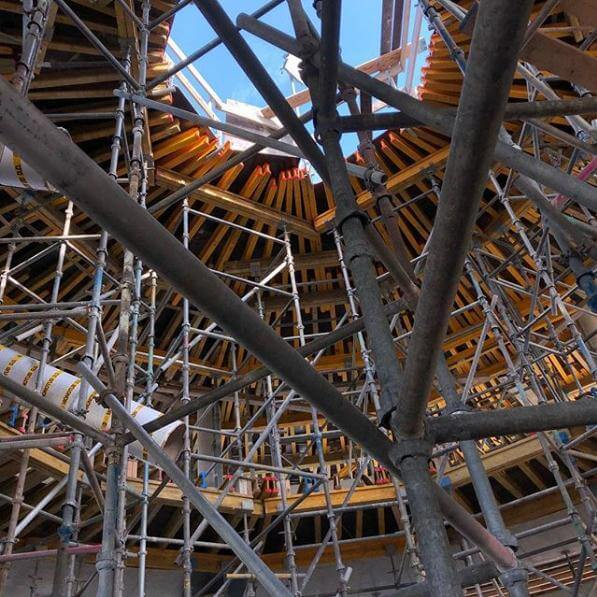

Cuplock for Curved Structures

Cuplock Scaffolding System is ability to allow ledgers / horizontals to lock into the standards / verticals from any angle. Because of variable Cuplock System sizes curved structures using can be easily and well realized.

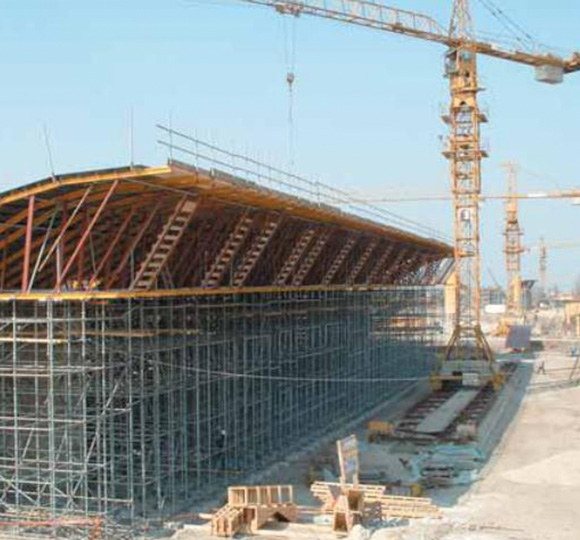

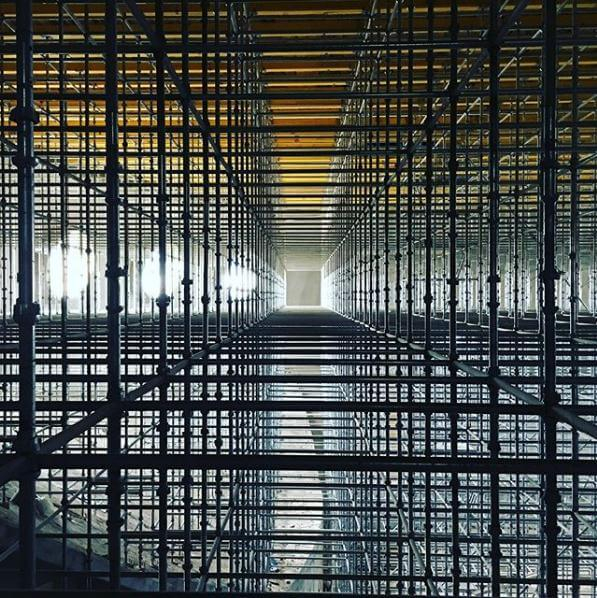

Cuplock for Support Structures

Cuplock Scaffolding System is widely used to create scaffolding support structures. Outrigger load carrying capacity of this cuplock system is very high. And the range of components allows the system to respond virtually and support applications.

Cuplock for Staircase Towers

The Cuplock Staircase tower incorporates special staircase components in the traditional Cuplock tower to create a safe, user-friendly access solution and is quick and easy to install.

Mga kaugnay na produkto

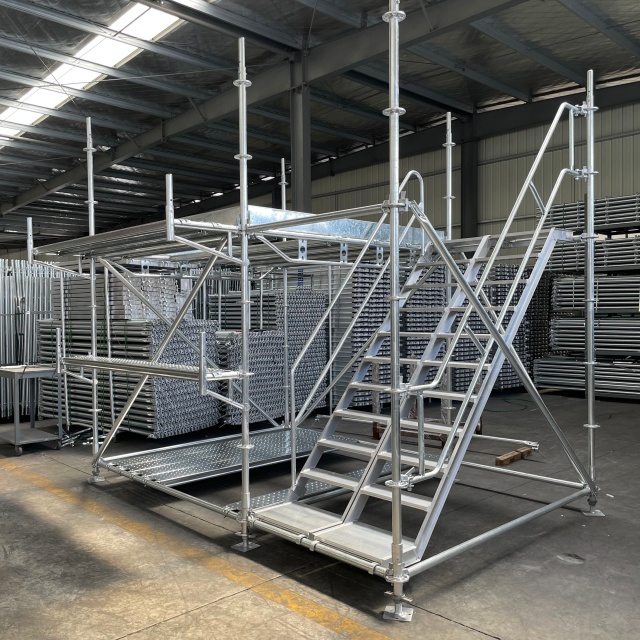

Ringlock Scaffolding System

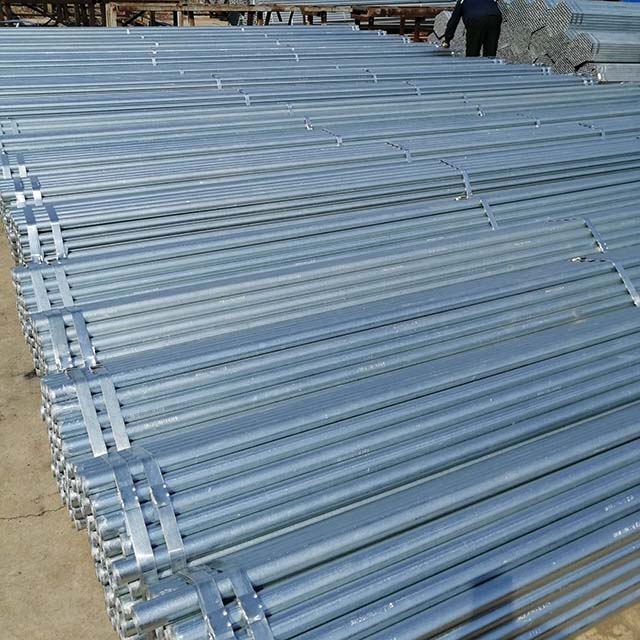

Scaffolding Pipe

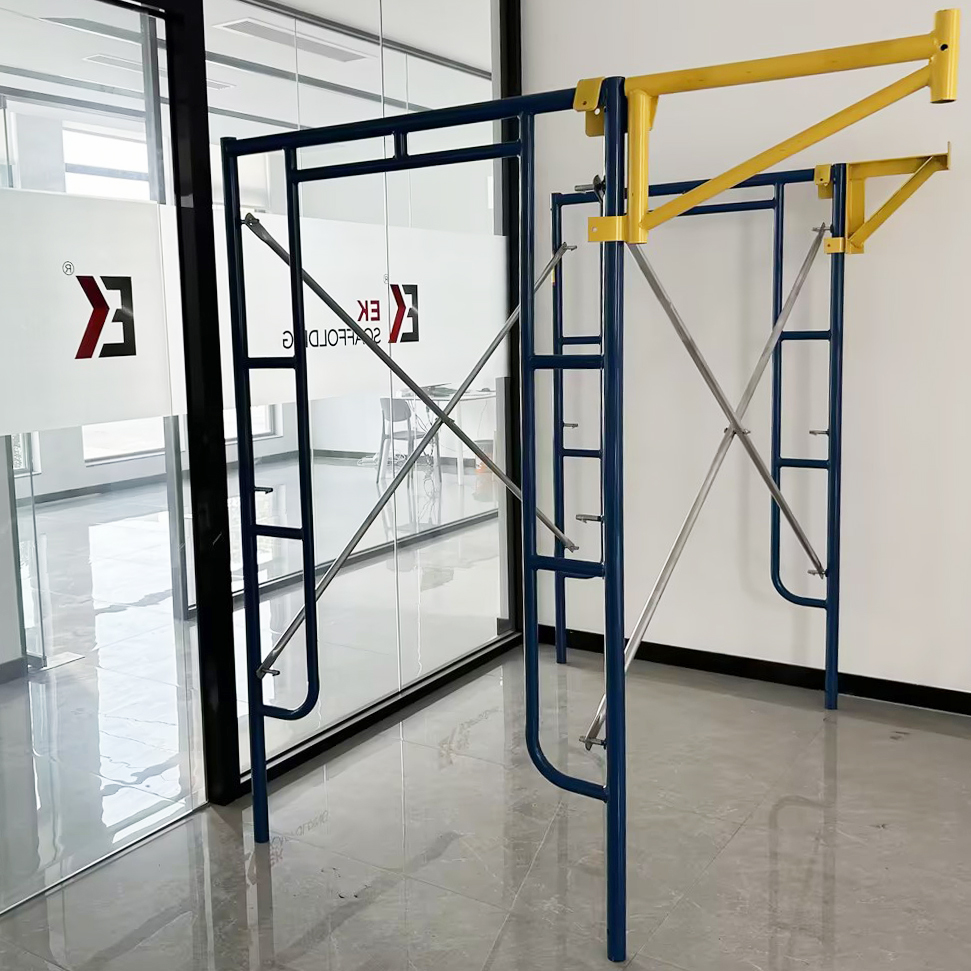

Frame Scaffolding System

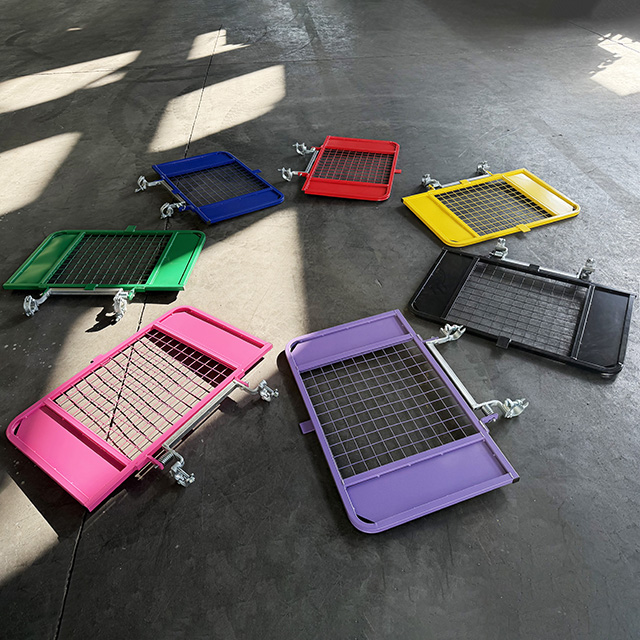

Scaffolding Gate

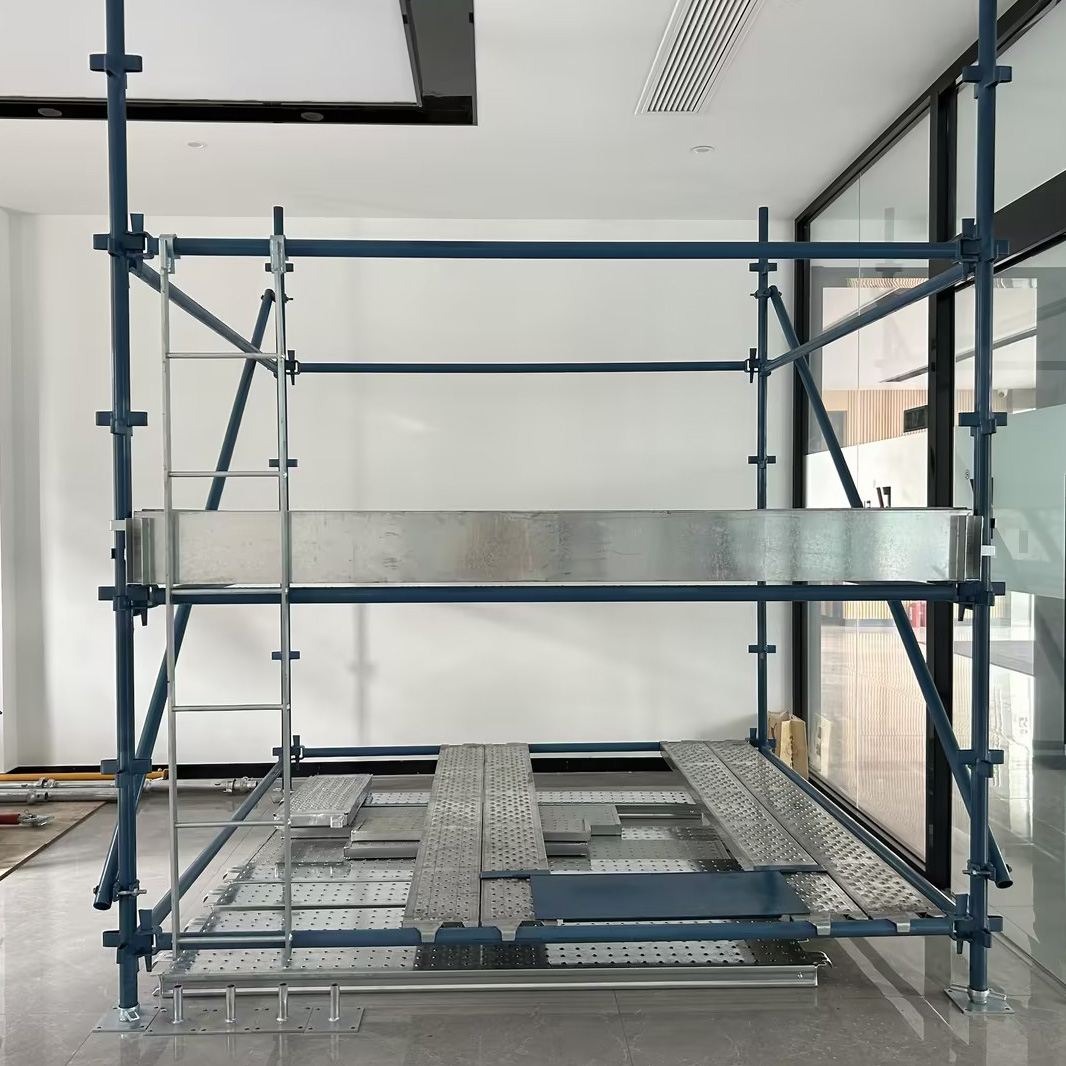

Kwikstage Scaffolding System

Aluminum Beam

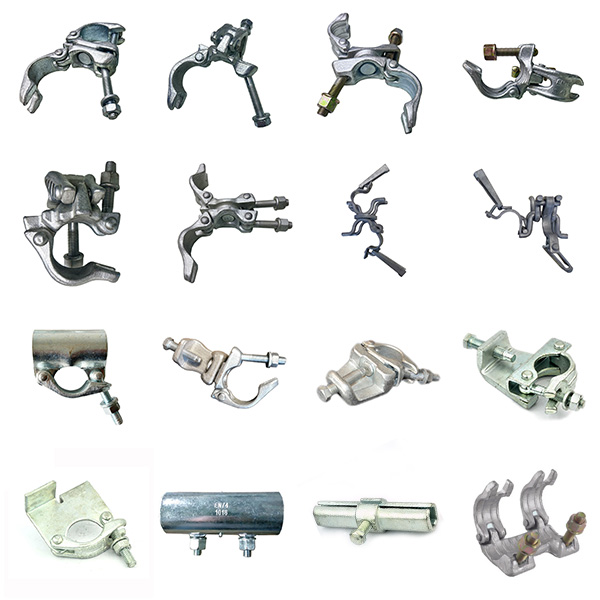

Scaffolding Coupler

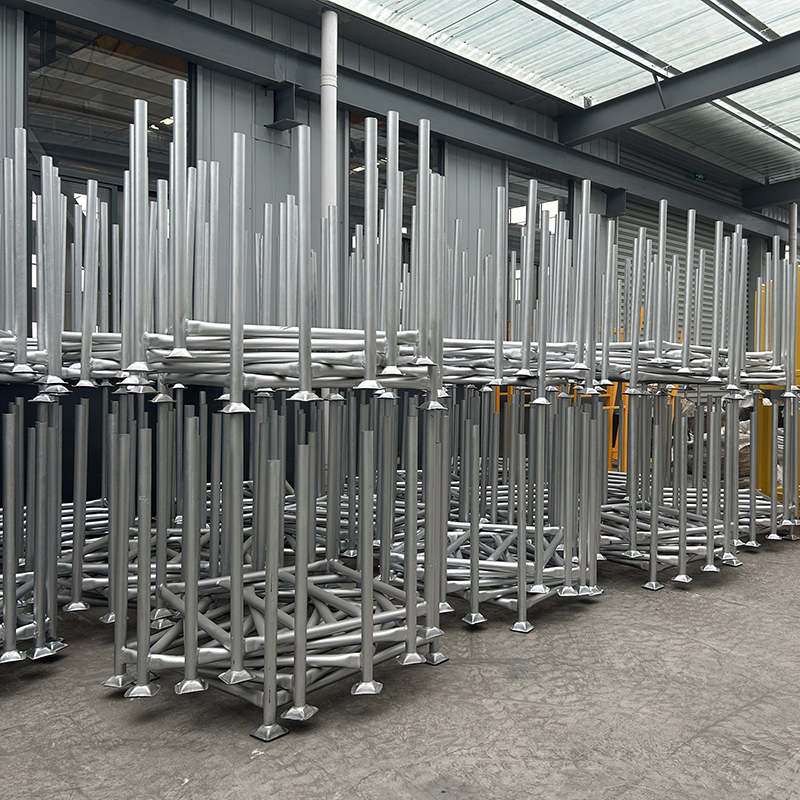

Pallet

Mangyaring Ipadala sa Amin ang Mga Produktong Gusto Mo.

Cuplock Scaffolding Blog

//rjrorwxhoinkmj5p.leadongcdn.com/cloud/jjBqnKnpSRkiloloioj/zhuangpeitubuzhou1.jpg

Gabay sa Gumagamit ng Cuplock Scaffolding: Pangkalahatang-ideya, Pagpupulong, At Mga Pag-iingat sa Paggamit

Ang cuplock scaffolding ay isang modular scaffolding system na gawa sa galvanized steel. Gumagamit ito ng kakaibang mekanismong 'cup-lock' sa mga vertical na pamantayan upang kumonekta ng hanggang apat na pahalang na ledger nang sabay-sabay. Salamat sa natatanging mekanismo ng pag-lock na ito—na nag-aalis ng pangangailangan para sa mga bolts o iba pang kumplikadong mga kabit—ang mga oras ng pagpupulong at pagtatanggal-tanggal ay maaaring makabuluhang bawasan. Ang aming mga produkto ng cuplock scaffolding ay sumusunod sa alinman sa EN 12810 / 12811 (European Standards) o ANSI / SSFI SC100-5/05 (North American Standards).

//rjrorwxhoinkmj5p.leadongcdn.com/cloud/lrBqnKnpSRmjmjknpmjm/qiyeweixinjietu_16824970416148.png

Paano Gamitin Ang Cuplock Scaffolding?

Ang cuplock scaffolding system ay isang modular scaffolding system, kadalasang gawa sa mataas na kalidad na bakal na may galvanized surface treatment para pahabain ang buhay nito. Ang Cuplock scaffolding system ay binubuo ng mga bahagi tulad ng mga pahalang na bar, vertical na pamantayan, beam, at adjustable na base plate.

//ikrorwxhoinkmj5p.leadongcdn.com/cloud/lmBqnKnpSRqkirqijnjo/cuplock.png

Ano ang cuplock scaffolding?

Ang Cuplock scaffolding ay isang matatag at maaasahang modular scaffolding system na may kakayahang ganap na suportahan ang mga kumplikadong gusali, na idinisenyo para sa pagtatayo, pagkukumpuni, at pagpapanatili. Ang isa sa mga pangunahing tampok ng Cuplock scaffolding ay ang wedge-lock system nito, na gumagamit ng kakaibang paraan ng koneksyon ng cuplock na inaalis ang pangangailangan para sa mga nuts, bolts, o wedges.

//jlrorwxhoinkmj5p.leadongcdn.com/cloud/lpBqnKnpSRmjmjjninjq/qiyeweixinjietu_16824970416148.png

Cuplock scaffolding

Ang Cuplock ScaffoldingCuplock Scaffolding System ay isang ganap na galvanized na multi-purpose steel scaffolding system para sa pangkalahatang pag-access at pagsuporta sa mga vertical na naglo-load. Ang mga natatanging round node ay nagbibigay -daan sa koneksyon ng hanggang sa 4 na mga sangkap sa isang operasyon ng pangkabit. Ang scaffolding ng Cuplock ay ginawa mula sa 3.2mm scaffoldin

//jlrorwxhoinkmj5p.leadongcdn.com/cloud/llBqnKnpSRmjknkqpljp/qiyeweixinjietu_16836987362162.png

Pamantayang Pamantayan sa Scaffolding

Sa mahusay na pagganap ng kaligtasan at simpleng pag-install, ang sistema ng scaffolding ng Cuplock ay isa sa mga multi-functional modular scaffolding at isa sa mga pinakasikat na sistema ng scaffolding sa kasalukuyan. Dahil ang scaffolding ng Cuplock ay may makatuwirang istraktura, simpleng paggawa at maginhawang konstruksyon, i

//ikrorwxhoinkmj5p.leadongcdn.com/cloud/ljBqnKnpSRrlpjonkijq/9cbfe214-5b19-41f6-afd9-c8356129bc56.jpg

PANIMULA NG CUPLOCK SCAFFOLDING

Ang Cuplock Scaffolding ay isang kilalang at malawak na ginagamit na sistema ng scaffolding na nagbibigay ng pangkalahatang pag-access at pagsuporta sa mga platform ng kaligtasan para sa iba't ibang mga proyekto. Ang Cuplock scaffolding ay malakas, maraming nalalaman at nababaluktot, at maaaring ipasadya at maiangkop sa iba't ibang mga site ayon sa mga kinakailangan sa customer. Ang Cuplock scaffolding ay gawa sa bakal na tubo, cuplock at blades sa pamamagitan ng katumpakan na pag -alis, at ang paggamot sa ibabaw ay ganap na na -galvanized upang maiwasan ang kalawang at kaagnasan. Ang pamantayang pang -scaffolding ng Cuplock at cuplock scaffolding ledger ay maaaring pagsamahin sa iba't ibang mga anggulo, na kung saan ay angkop para sa hubog na konstruksiyon ng gusali.

//jlrorwxhoinkmj5p.leadongcdn.com/cloud/joBqnKnpSRkiloloiri/henggan_1.jpg

Cuplock scaffolding ledger

Materyal: Q235 Steel, Q345 Steeldiameter: 48.3-48.6mmthickness: 2.75/3.0/3.2mmLength: 0.6m, 1m, 1.5m, 2.5m atbp. Oras ng Availabledelivery: 25-30 araw pagkatapos

//jlrorwxhoinkmj5p.leadongcdn.com/cloud/lqBqnKnpSRpjokirkijo/wankouanzhuang.jpg

Cuplock Scaffolding System

Cuplock Scaffolding System Ang isa sa mga pinakamahusay na nagbebenta ng scaffolding, ito ay nailalarawan sa pamamagitan ng paraan ng koneksyon ng paggamit ng mga tasa ng metal upang i-lock ang mga beam, walang mga tornilyo, bolts at iba pang mga accessories ay kinakailangan sa buong proseso ng konstruksyon.

//jlrorwxhoinkmj5p.leadongcdn.com/cloud/lmBqnKnpSRqkirqijnjo/cuplock.png

Pangunahing sangkap ng cuplock scaffolding

Ang Cuplock Scaffolding ay isang bagong uri ng sistema ng scaffolding na malawakang ginagamit sa mga proyekto sa konstruksyon. Malawakang ginagamit ito sa iba't ibang mga proyekto sa engineering dahil sa simpleng istraktura nito, nababaluktot na pagpupulong at malakas na kapasidad ng tindig. Sa sistema ng scaffolding ng cuplock, maraming mga pangunahing sangkap ang magkasama ay bumubuo nito

//ikrorwxhoinkmj5p.leadongcdn.com/cloud/loBqnKnpSRqjrqoiqkjq/cuplock-anzhuangbuzhou.jpg

Ang Cuplock scaffolding ay ang pinakapopular na sistema ng scaffolding

Ang Cuplock Scaffolding ay ang pinakapopular na sistema ng scaffolding sa buong mundo at nag -aalok ng maraming mga pakinabang sa tradisyonal na scaffolding, higit sa lahat na nangangailangan ng apat na mga sangkap para sa mabilis at madaling pag -install na may kaunting ingay. Angkop para sa suporta sa channel o formwork, parehong pag -install at pag -alis ng pag -save ng oras at paggawa

//jlrorwxhoinkmj5p.leadongcdn.com/cloud/llBqnKnpSRpjnjrnipjq/d07c237ee21604264bcb7d7381918a8.jpg

Ano ang pagkakaiba sa pagitan ng Cuplock at Ringlock?

Bilang isang tagagawa ng scaffolding, ang EK ay maaaring magbigay ng iba't ibang mga produkto ng scaffolding, tulad ng ringlock, cuplock, base jack, steel prop, atbp Ngayon, ihambing natin ang pagkakaiba sa pagitan ng ringlock at cuplock. 1. Ang mga sangkap ay maaaring mai-attach sa cuplock gamit ang isang gitnang node cup-type na pagkonekta point, na loc

//rjrorwxhoinkmj5p.leadongcdn.com/cloud/lpBqnKnpSRpjokirlijo/wankouanzhuangmoxing.png

Paano mag -install ng cuplock scaffolding?

Ang Cuplock scaffolding ay may mas mataas na kapasidad ng pag -load, maaaring suportahan ang mas kumplikadong mga istruktura ng disenyo at mas mataas na taas, at madaling i -install at transportasyon. Ang Cuplock Scaffolding ay may mga pakinabang sa iba pang mga uri ng scaffolding, higit sa lahat dahil ang gitnang kasukasuan sa poste ay maaaring maiugnay ang apat na pahalang na rod sa AF

Leading Supplier of Cuplock Scaffolding System

Cuplock Scaffolding Video

Bulk Cuplock Scaffolding System

What is cuplock scaffolding

Why Choose Cuplock?

Cup-Locking Procedure:

Cuplock Scaffolding System Parts

Mga Listahan ng Bahagi ng Cuplock Scaffolding

Spigoted Standard / Vertical

Spigotless Standard / Vertical

Cuplock Ledger / Horizontal

Cuplock Transom

Cuplock Brace / Diagonal

Lahat ng Produkto ng Cuplock

EK Cuplock System Inspection

EK Cuplock Scaffolding Pag -install ng Pagsubok

Cuplock Scaffolding Catalogue

Projects of Cuplock Scaffolding System

Cuplock for Curved Structures

Cuplock for Support Structures

Cuplock for Staircase Towers

Mga kaugnay na produkto

Cuplock Scaffolding Blog

Tagagawa ng Scaffolding

EK scaffolding
